Smart Stacking™ Technology

A patented technology enabling the transfer of ultra-thin layers from etched or partially etched CMOS wafers to other materials.

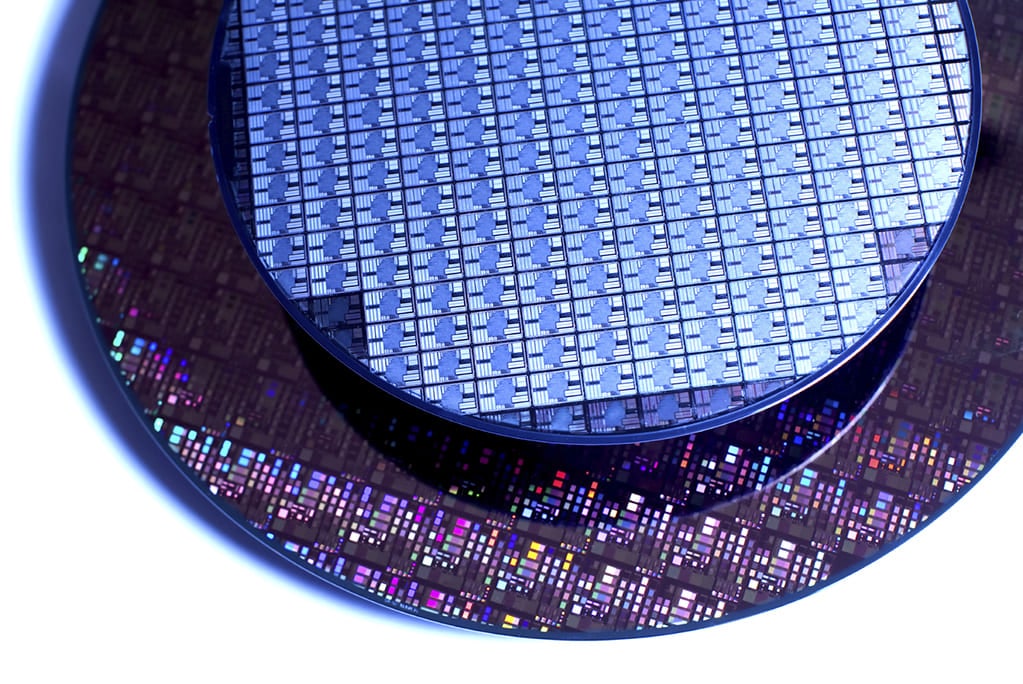

smartsic-hero

Ready to join us and build your future?

Layer Transfer Technology

This transfer is carried out by direct bonding of the plate at low temperature and by mechanical-chemical thinning.

With extensive expertise in layer transfer, Soitec tailors solutions to customer needs: Smart Stacking™ technology adapts to plates from 150 mm to 300 mm in diameter.

It is also compatible with a wide variety of substrates including silicon, glass, ceramic (polycrystalline AlN), fused silica, and sapphire.

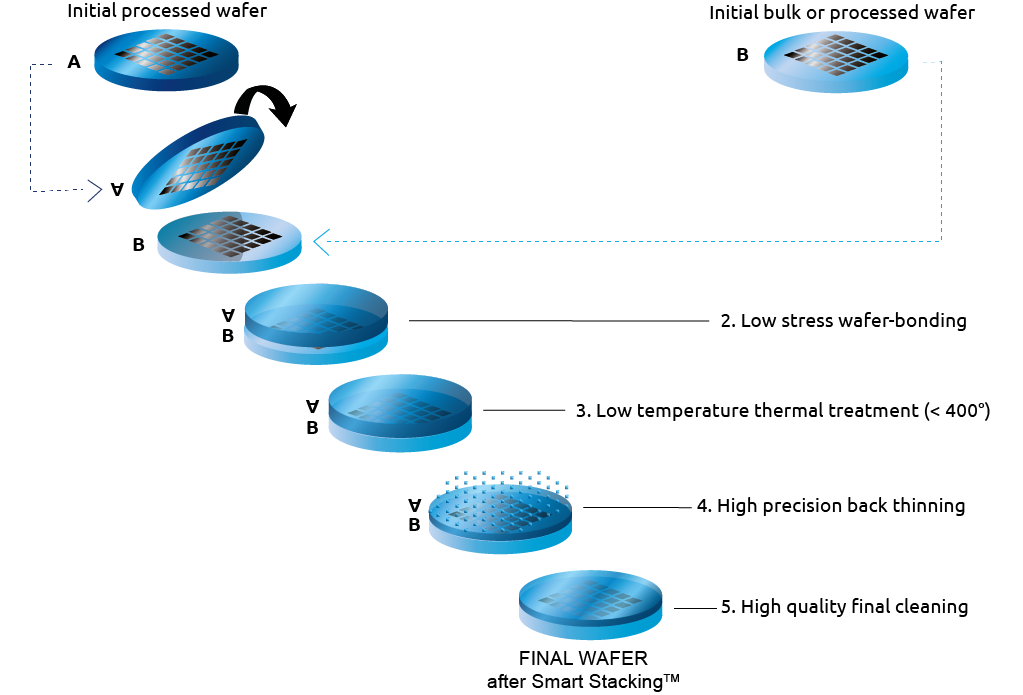

How Smart Stacking™ Works

Smart Stacking™ transfers thin layers of wafers to other substrates in a high-performance industrial environment, following these key steps:



  • Surface conditioning

  • Low-temperature molecular bonding

  • Wafer thinning

  • Edge treatment

  • Cleaning and metrology



This process is backed by more than 20 years of experience and a strong global patent portfolio.
